Dry wet rubbing fastness tester AATCC Manual Crockmeter Rub and color transfer testing Color fastness tester

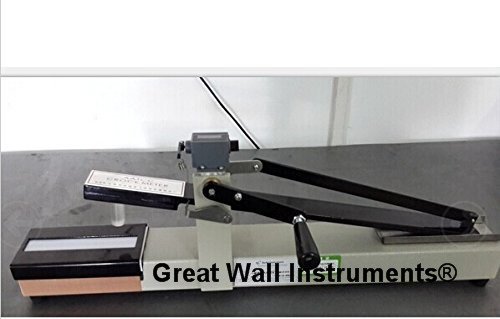

The Crockmeter is a relatively simple rub tester commonly used to determine the amount of color transferred from textile materials to other surfaces by rubbing.This instrument has also been utilized to conduct smudge or smear resistance tests on images produced by a printer or copier. For paints and coatings, the crockmeter is useful when evaluating the change in gloss due to rubbing,scuffing or marring.

Standards: AATCC 8,AATCC165,ISO 105, BS1006


Technical Parameters:
Diameter of crock finger: 16mm
load: 9N
Rubbing track: 104mm
Model: manual
Crank rotation: 60 times/min
Maximum size and thickness of sample : 220*110*5mm
Dimensions: 600*190*150mm (L*W *H)
Net wight: about 6kg


The crockmeter includes:
Base unit
Sample clip： 1 piece
Standard sandpaper ： 2 pieces
Standard clamp ring ： 1 piece
Standard crock cloth ：10 pieces
